Technical standards and specifications for high-power liquid-cooled electric vehicle charging cables

The charging cable is a bridge connecting the charging pile and the car. When charging, the electric vehicle charging gun is connected to the socket. Since the cable has current flowing for a long time, the temperature is too high, and if the time is too long, there is a risk of burnout, so it is more durable. Thermally safe cables came into being.

As a professional electric vehicle cable manufacturer, OMG has produced "cold and fast" high-power liquid-cooled charging cables to meet market demand, which can conduct electricity while dissipating heat with coolant.

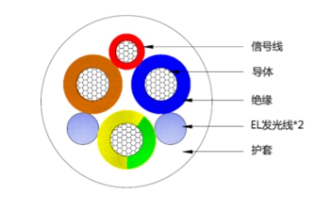

Technical specifications for high-power liquid-cooled electric vehicle charging lines:

1. Conductor

Number of cores: a variety of cores are optional, and the conductor is made of bare copper

2. Insulation

The conductor is covered with thermoplastic elastomer insulation material, and the insulation is extruded, which is solid and uniform, and the insulation itself will not be damaged after removing the insulation

3. Core wire and filling

The core wires are precisely twisted together and center-filled with PP wire

4. Pipes

The pipe material is tetrahydrofuran or FPP, all of which meet the requirements of relevant technical standards

5. Sheath or outer sheath

Covered with thermoplastic polyurethane material, extruded in a single layer, and tightly fitted

6. Nameplate identification

The trademark, model, and rated line section are printed or stamped on the sheath, and the printed logo is very durable and clear.

At present, the company's liquid-cooled charging cable business includes water-cooled charging cables and oil-cooled charging cables, and the liquid-cooled cables used are resistant to high and low temperatures, corrosion resistance, explosion resistance, and weather resistance.
