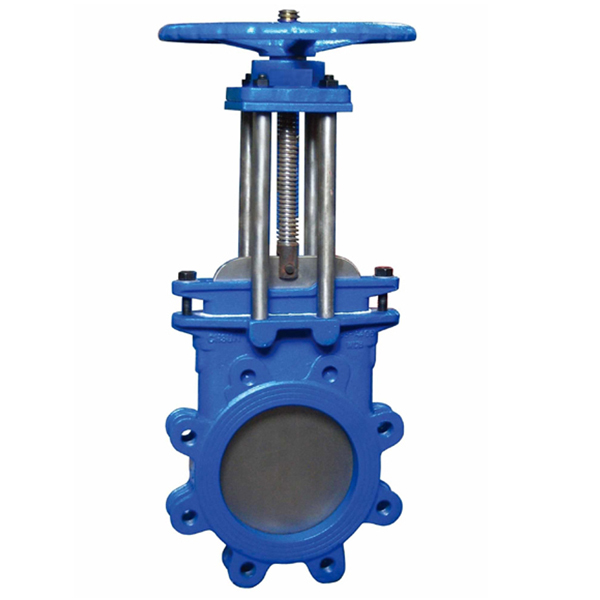

шиберно-ножевая задвижка BKVALVE handwheel Dn400 With Price Ductile Iron Stem Sluice Knife Gate Valve

Среднее (Всего голосов: 0) 0.0
1000 руб.
Добавить в корзину

BKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves.

In the field of valves, company has a rich design and...

Адрес: Китай, 300408, Tianjin, , Industry zone, West Ditou Town, Beichen District, Tianjin ,China 300408
Телефон: +862289700321
Факс: +862289700320
E-mail адрес:
Skype: hghmichael
Компания: TIANJIN BKVALVE Manufacturing Co., Ltd
Артикул: BK-014
Цена: 1000 руб.
Город: Tianjin
Категория: Другое
Описание

фланцевый дроссельный клапан STAINLESS-STEEL-FLANGED-BUTTERFLY-VALVE-WITH-PTFE FOR BKVALVE

Material: Cast Steel.ductile Iron,cast Steel,SS304,SS316 Color: Blue,red,white,black

Package: Wooden Carton Medium: Oil, Water, Gas, Acid,alkali Etc

Model Type: Gate Valve Size: DN50-DN2000

Pressure: 1.0-4.0 Produce Name: Knife Gate Valve

Seat: Epfd Operation: Handle,worm Box,electric,pneumatic

BKVALVE handwheel Dn400 With Price Ductile Iron Stem Sluice Knife Gate Valve

I

Product introduction

The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.

Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc.

and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction,

petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.

Specifications

1.gate valve design DIN 3352 F5

2.Rising/Non-rising stem

3.Rubber encapsulated wedge

4.Clockwise closing directionProduct Features

Low torque operation

Rubber encapsulated wedge

Clockwise closing direction

Fusion bonded epoxy coated inside and outsideProduct Advantage

1,The valve body is made of precision casting, the precise geometry makes the north of the valve body not need any finishing, so as to ensure the tightness of the valve.

2,The body is made of ductile iron QT450-10, shall not be broken by transportation, collision or installation.

3,The valve body adopts streamlined design, so that the medium moves straight in the valve cavity, the flow resistance is smaller and the flow area is larger.

4,The valve adopts bidirectional sealing design, and the installation direction and medium flow direction are not limited.

5,The inside and outside of the valve bodyadopt powder epoxy resin electrostatic coating, which can effectively prevent corrosion and rust caused by contact between valve body and medium, and can be used in sewage system.

6,The valve plate adopts high-quality overall rubber coating, the use of advanced technology makes the vulcanized rubber vulcanization after the valve plate to ensure accurate geometry, and the rubber and ductile iron gate connection is firm and not easy to fall off with good elastic memory, so as to ensure the stable performance of the valve sealing.

7,The bottom of the valve body adopts no groove design, and does not cause accumulation of impurities or dirt, thereby effectively avoiding the leakage caused by impurities scratching of the valve seat.

8,The valve stem is designed with three "O" ring seal. The friction resistance of the switch can be reduced, water leakage is greatly reduced, and the sealing ring can be replaced without cutting off water.

9,The screw made of aluminum bronze material, so the switch is more smooth, not easy to rust, difficult blockage.

10,The overall of valve adopt non rising stem design, reducing the valve, especially large diameter valve installation space.

11,For the installation of valves using in deep well and underground pipe, deep well connecting cap or lengthening rod mechanism can be provided according to customer requirements.

12,Bkvalve company specialized intentions since 2001, has a professional production, sales, research, after-sales team, is your strong backing of sales and use.

Standard Test

Shell test

The cold test of the valve body, which is connected with the valve body and the valve cover,

is carried out to test the structural strength, pressure resistance and compactness of the

valve housing, including the whole housing in the fixed connection

Closure test

Test of sealing performance between valve opening and closing parts and seat seal, between

valve body and valve seat

Test pressure

The display pressure of the valve lumen during the experiment

Test fluid

Liquid or gas for pressure test of valves

Test fluid temperature

The temperature of the liquid or gas used for the pressure test of the valve shall be in the

range of 5-40 unless otherwise specified

Resilient seats

Seals made of non-metallic elastic materials, solid and semisolid lubricants, etc.

Adoptive Standards

Technical Data

DN50-DN300

PN1.0-1.6MPa

Flange Connection:PN10/16

Face to Face dimension:DIN 3202 F5

1.body: ductile iron

2.bonnet:ductile iron

3.gland:ductile iron

4.wedge:ductile iron+EPDM

5.lifting nut:brass

6.adjustable stem:SS420

7.clamp ring:brass

8.O ring:silicone

9.handwheel:ductile iron

10.bolt:carbon steel

11.ring:EPDM

12.bolt:SS304
