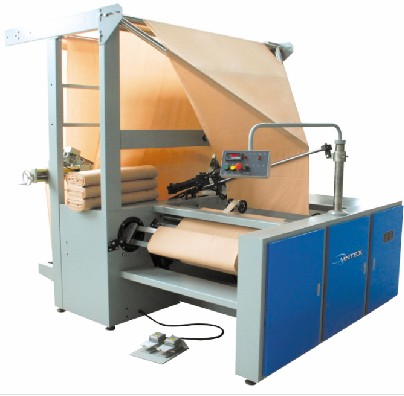

Double Folding & Lapping Machine(ST-DFLM)

Product Description

ST-DFLM is for woven, tulle, lacquard...fabrics. This machine can be supplied to operate fabrics from plait/loose form to fabrics on slab/card board, or with various other fabric inlet options.

Product Feature

DOUBLE FOLDING & LAPPING MACHINE: FEATURES: 1) . Doubling, lapping, measuring any type of fabrics with inlet from plait/ loose fabrics, rolls or batchers and with outlet on slabs/ card board. 2) . For proper folding, special systems for thin and sensitive fabrics. 3) . Automatic alignment of selvedge on the doubling triangle with very sensitive and precise photo-electric guide. 4) . Reliable measuring with electronic calibrated counter meter system. 5) . Hard or loose folding feature, due to torque controlled, from inlet of fabric to end of fabrics on slab/ card board. 6) . Foot switch is used to withdraw the finished fabrics and send the empty sword plate. 7) . Automatic printing on selvedge, checking table, printing of measuring - Optional

Product Specification/Models

Technical Specification: Speed: 0-70m/min; Fabric Width: 1.8-4.0 meters; Major AxisMax.: 700mm; Dimensions(LxWxH): 2660x2120x2300( for model ST-DFLM-180 only); Weight: 1000kgs(for model ST-DFLM-180 only); Electric Specs: 3Phase-380V;50HZ(can be adjusted to suit for different countries); Remark: Variable working width is possible and can be tailor-made to your requirements of processing needs.
